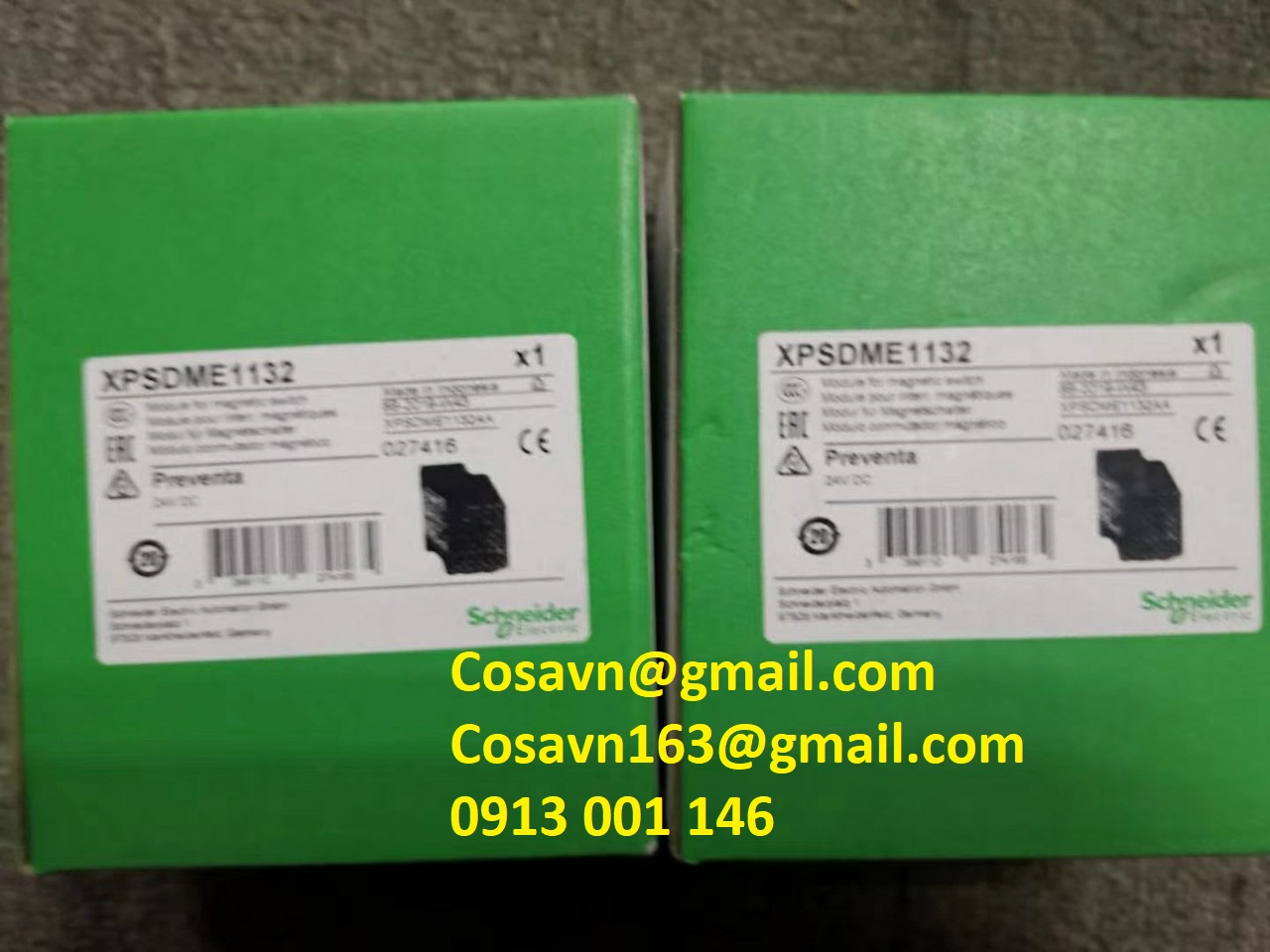

Security Module XPSDME1132
Schneider Electric Security Module XPSDME1132 XPSDME1132
Số hiệu: XPSDME1132
Hãng sản xuất : SCHNEIDER ELECTRIC
Description

Preventa XPS-DME Safety Module for Monitoring 6 Coded

0 VND
Lượt xem: 22830 Lượt bình luận: 0
  • Main
    range of product
    Preventa Safety automation
    product or component type
    Preventa safety module
    safety module name
    XPSDME
    safety module application
    Monitoring 6 coded magnetic switches
    function of module
    Coded magnetic switch monitoring
    safety level
    Can reach PL e/category 4 conforming to EN/ISO 13849-1
    Can reach SILCL 3 conforming to EN/IEC 62061
    safety reliability data
    DC > 99 % conforming to EN/ISO 13849-1
    MTTFd = 82.4 years conforming to EN/ISO 13849-1
    PFHd = 3.97E-9 1/h conforming to EN/IEC 62061
    [Us] rated supply voltage
    24 V DC - 20...20 %
    output type
    Relay, 2 NO circuit(s), volt-free
    number of additional circuits
    2 solid state outputs
    Complementary
    synchronisation time between inputs
    < 0.5 s
    maximum power consumption in W
    3.5 W
    input protection type
    Internal, electronic
    [Uc] control circuit voltage
    28 V DC
    maximum line resistance
    100 Ohm
    breaking capacity
    180 VA holding AC-15 C300 relay output
    1800 VA inrush AC-15 C300 relay output
    breaking capacity
    1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
    output thermal current
    6 A per relay for relay output
    [Ith] conventional free air thermal current
    12 A
    associated fuse rating
    4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
    6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
    minimum output current
    10 mA for relay output
    minimum output voltage
    17 V for relay output
    maximum response time on input open
    20 ms
    [Ui] rated insulation voltage
    300 V (pollution degree 2) conforming to IEC 60947-5-1
    300 V (pollution degree 2) conforming to DIN VDE 0110 part 1
    [Uimp] rated impulse withstand voltage
    4 kV overvoltage category III conforming to IEC 60947-5-1
    4 kV overvoltage category III conforming to DIN VDE 0110 part 1
    local signalling
    15 LEDs
    connections - terminals
    Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible without cable end
    Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid without cable end
    Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel
    Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel
    Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible without cable end
    Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid without cable end
    Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel
    Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
    current consumption
    8 mA at 28 V DC on power supply
    mounting support
    35 mm symmetrical DIN rail
    net weight
    0.3 kg
    Environment
    standards
    EN 1088/ISO 14119
    EN/IEC 60204-1
    EN/IEC 60947-5-1
    product certifications
    UL
    CSA
    TÜV
    IP degree of protection
    IP20 (terminals) conforming to EN/IEC 60529
    IP40 (enclosure) conforming to EN/IEC 60529
    ambient air temperature for operation
    -10…55 °C
    ambient air temperature for storage
    -25…85 °C
    Offer Sustainability
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    PVC free
    Yes
    Contractual warranty
    Warranty
    18 months
