Công Tắc Áp Suất

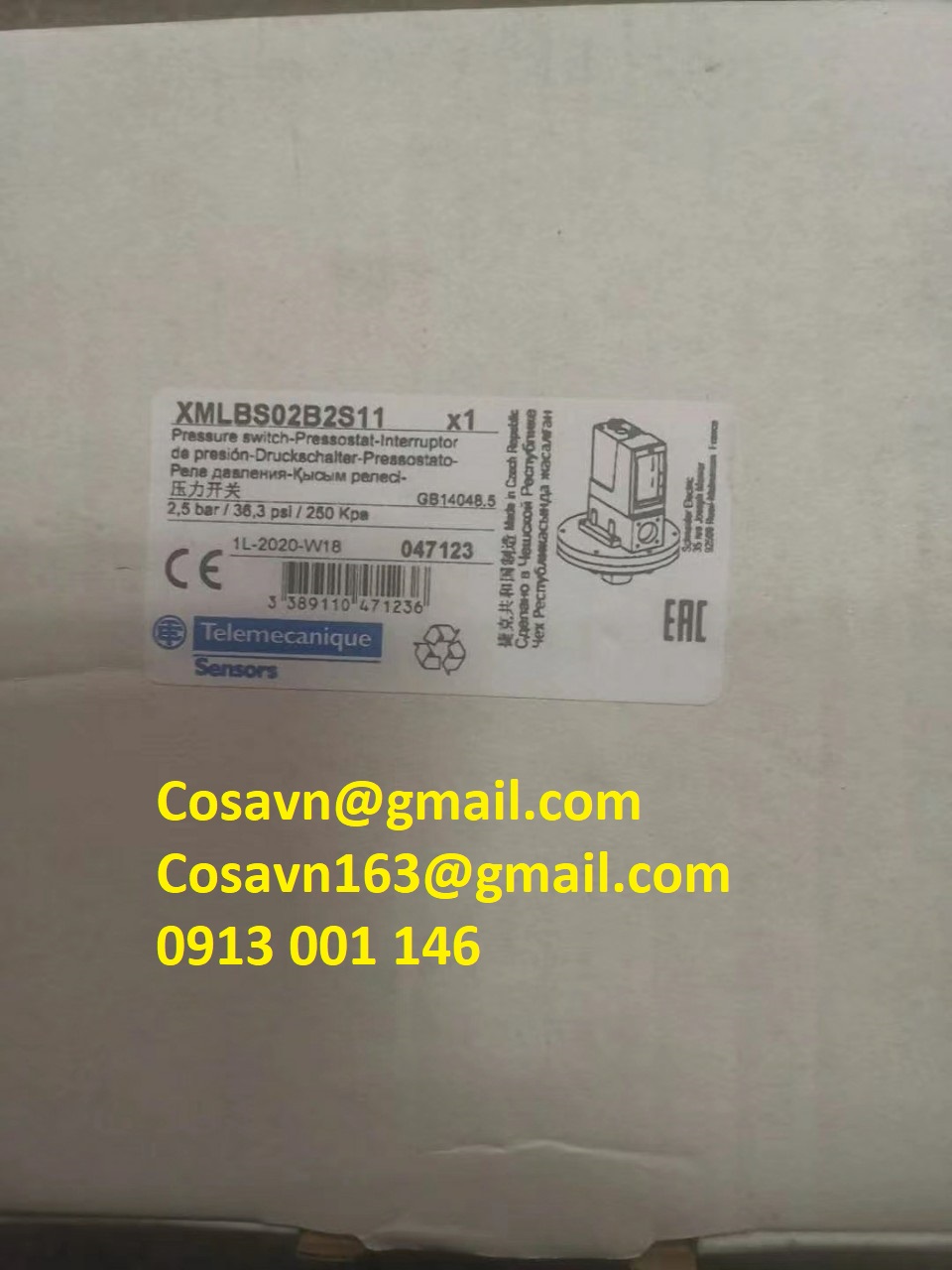

Công Tắc Áp Suất XMLBS02B2S11

Số hiệu: XMLBS02B2S11

0 VND

Main
range of product	OsiSense XM
product or component type	Electromechanical pressure sensor
pressure sensor type	Electromechanical pressure sensor
device short name	XMLB
pressure sensor size	2.5 bar
controlled fluid	Air (0…160 °C) Fresh water (0…160 °C) Hydraulic oil (0…160 °C)
fluid connection type	G 1/4 (female) conforming to ISO 228
electrical connection	Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
AWG gauge	AWG 20...AWG 14
cable entry	Cable gland 9…13 mm
contacts type and composition	1 C/O
product specific application	30 bar overpressure
pressure switch type of operation	Regulation between 2 thresholds
electrical circuit type	Control circuit
scale type	Adjustable differential
local display	With
adjustable range of switching point on rising pressure	0.3…2.5 bar
adjustable range of switching point on falling pressure	0.2…2.28 bar
possible differential maximum at high setting	1.45 bar
maximum permissible accidental pressure	37.5 bar
destruction pressure	67.5 bar
pressure actuator	Diaphragm
materials in contact with fluid	Steel FPM, FKM
enclosure material	Zinc alloy
[In] rated current	3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1

Complementary
possible differential minimum at low setting	0.1 bar (- 0.03 bar, + 0.05 bar)
possible differential minimum at high setting	0.22 bar (- 0.03 bar, + 0.05 bar)
maximum permissible pressure - per cycle	30 bar
terminal block type	4 terminals
maximum operating rate	120 cyc/mn
repeat accuracy	2 %
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-1
auxiliary contacts operation	Snap action
contacts material	Silver contacts
maximum resistance across terminals	25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A
short-circuit protection	10 A cartridge fuse, type gG (gl)
mechanical durability	2000000 cycles
setting	External
height	162 mm
depth	110 mm
width	110 mm
net weight	3.5 kg

Environment
standards	UL 508 CE EN/IEC 60947-5-1 CSA C22.2 No 14
product certifications	UL LROS (Lloyds register of shipping) CCC BV EAC CSA
protective treatment	TC standard version
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
operating position	Any position
vibration resistance	4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
shock resistance	50 gn conforming to IEC 60068-2-27
electrical shock protection class	Class I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030
IP degree of protection	IP66 conforming to EN/IEC 60529

Packing Units
Unit Type of Package 1	PCE
Unit Type of Package 2	S04

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
